TX00p26

COAXIAL TELEPHONE CABLES

TX 00-P

Conductor diameter 2,6/9,5 mm
Sheath: Lead
Anti-corrosion protection: PE sheath

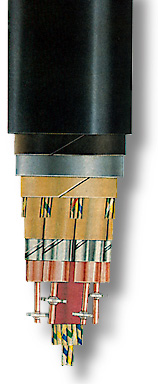

Conduit cable with lead sheath and PE protection from corrosion

There is also variant with conductor diameter 1,2/4,4 mm

		Make- Up				Nominal sheath thickness				Aprox. cable diameter				Aprox. cable diameter				Aprox. cable weight				Normaly factory length
						mm				mm				mm				kg/km				m
	----------------------				-----------------				-----------------				-----------------				-----------------				--------------------
		2X2,6/9,5 TD4X4X0,9+ +TF4X4X0,9				1,8				29,5				36				3050				611

		4X2,6/9,5 TD3X4X0,9+ +TF2X4X0,9				1,95				33				40				3760				611

		6X2,6/9,5 TD6X4X0,9+ +TF7X4X0,9				2,05				41,5				50				5360				306

		8X2,6/9,5 TD20X4X0,9+ +TF7X4X0,9				2,3				50,5				58,5				7405				306
