PVC INSULATED HOOK - UP WIRES, TEMPERATURE CLASS 105°C
Nominal voltage: 300 V
Testing voltage: 1500 V
Type: MVNO ( MIKROVIN BRAIDED )
Standard: SNO 4044
(BS-G 195)

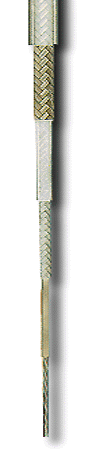

Description:
| Conductor: | 1. Flexible tinned copper strand | |
| Insulation: | 2. Seamless layer of PVC compound | |
| 3. Fiber glass braid | ||
| Sheath I : | 4. Flame resistant polyamide |
|
| Screen : (electrical protection) |
5. Tinned copper wire braid | |
| Sheath II : ( Outer jacket ) |
6. Flame resistant polyamide |
Application:
For electrical installation in aeronautics where
resistance to flame, abrasion and chemicals is requested.
Applied temperature: from - 40°C upto + 150°C.
| Nominal cross - selection | Construction (wire No x dia.) |
Insulation thickness | Sheath I thickness min. | Braid wire thick. | Outer jacket thick. | Outer dia | Total weight | Packing | ||||||||||||||
| min | min. | max. | ||||||||||||||||||||
| AWG | mm 2 | n x mm fi | mm | mm | mm | mm | mm | mm | kg/km | m | ||||||||||||
| ------ | ------ | ------------ | ------ | ------ | ------ | ------------ | --------- | ---- | ------ | --------- | ||||||||||||
| 22 | 0,336 | 19 x 0,15 | 0,16 | 0,11 | 0,07 | 0,13 | 1,9 | 2,4 | 10 | 50 | ||||||||||||
| 20 | 0,538 | 19 x 0,19 | 0,18 | 0,11 | 0,07 | 0,13 | 2,2 | 2,7 | 13 | 50 | ||||||||||||
| 18 | 0,932 | 19 x 0,25 | 0,21 | 0,11 | 0,07 | 0,13 | 2,5 | 3,0 | 18 | SO | ||||||||||||
| i6 | 1,169 | 19 x 0,28 | 0,23 | 0,11 | 0,07 | 0,13 | 2,8 | 3,3 | 21 | 50 | ||||||||||||
| 14 | 1,%3 | 37 x 0,26 | 0,23 | 0,11 | 0,07 | 0,13 | 3,3 | 3,8 | 31 | 50 | ||||||||||||
| 12 | 3,163 | 37 x 0,33 | 0,23 | 0,11 | 0,07 | 0,13 | 3,7 | 4,2 | 44 | 50 | ||||||||||||
