Thermoplastic telecommunication cables

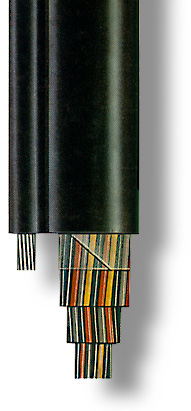

SELF-SUPPORTING SUBSCRIBER CABLE WITH SUPPORTING STRAND

TK 33 U

APLICATION

Self-supporting subsciber cable with supporting strand is being applied to secondary telephone network lines. It is laid on support at the ground and other points of support as well.
Supporting strand consists of galvanized steel wires and at a normal span withstands its own cable weight with additional loading as wind , snow, ice,etc.
Permissible temperature ranges :
At laying from -5 up to + 50° C
Before and after laying from -30 up to +50° C
Max. effective voltage is 150 V a.c. and 210 V d.c.
The use of this cable in power purposesis not permitted.

Make -up

Copper conductor 0.6 and 0.8 mmm dia.
Compact PE insulation , 0.4 and 0.45 mm nominal thickness.
4 insulated conductors twisted to star quads.
Cable core consists of concentric or group twisted quads.
Supporting strand is set parallely with cable core.
PE black sheath contains cable core and supporting rope and shaped to figure 8.

Colour coding

Core colours of a quad are different and specified in Table :
Concentric twisting
Quads in layer a-wire b-wire c-wire d-wire
First- Marker
Direction
Odd
Even
Group twisting
Quad in
basic group		 a-wire b-wire c-wire d-wire
The first
The second
The third
The fourth
The fifth
Make-up Aprox.
Cable
Dia.		 Aprox.
Cable
Height		 Strading
rope		 Aprox
Cable
Weight		 Factory
Lenght
mm mm mm kg/km m
----------------------- ----------------- ----------------- --------------- ----------------- -------------------
1 X 4 X 0,6 7,0 13,0 3 X 1,0 85 500
3 X 4 X 0,6 10,5 17,5 7 X 1,0 159 500
5 X 4 X O,6 12,0 19,5 7 X 1,0 212 500
10 X 4 X 0,6 17,0 25,5 12 X 1,0 372 500
15 X 4 X 0,6 19,0 28,5 19 X 1,0 509 500
20 X 4 X 0,6 21,0 30,5 19 X 1,0 596 500
25 X 4 X 0,6 24,0 34,0 19 X 1,0 715 500
30 X 4 X 0,6 25,0 35,0 19 X 1,0 801 500
40 X 4 X 0,6 28,5 39,5 19 X 1,2 1030 500
50 X 4 X 0,6 31,5 42,5 19 X 1,2 1201 500
1 X 4 X 0,8 7,5 14,0 3 X 1,0 100 500
3 X 4 X 0,8 12 19,0 7 X 1,0 205 500
5 X 4 X 0,8 14,5 23,0 12 X 1,0 355 500
10 X 4 X 0,8 19,5 28,5 10 X 1,0 533 500
15 X 4 X 0,8 22,0 32,0 19 X 1,0 686 500
20 X 4 X 0,8 25,0 35,0 19 X 1,0 839 500
25 X 4 X 0,8 28,5 39,5 19 X 1,2 1057 500
30 X 4 X 0,8 29,5 40,5 19 X 1,2 1141 500
