PVC insulated power cables

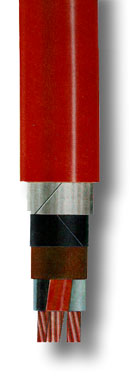

Steel tape armoured PVC insulated and PVC sheathed three-core power cable for nominal voltage 6/10 kV

Nominal voltage: 6/10 kV
Test voltage: 17 kV

Type: PP 41 and PP 41-A
Standard: JUS N.C5.220

Construction:

Conductor: Soft annealed solid or stranded copper or aluminium wire.
Insulation: A seamless layer of PVC compound.
Cable Core: Stranded cores covered with unvulcanized rubber layer.

Armouring: A layer of two steel tapes with copper line from 6 mm2 under of armour.
Sheath: Red extruded PVC tube.

Application: For H.V. power distribution in the locations where mechanical damages might be expected. These cables are laid in the ground, directly, in the cable trenches or outdoors.

Number of cores and nominal
area of
conductors		 Thickness of insulation Thickness of steel tapes Thickness of sheath Overall diameter Cable weight
PP 41		 Cable weight
PP 41-A		 Standard length Drum Net weight
of copper		 Net weight
of aluminium
mm2 mm mm mm mm kg/km kg/km m No kg/km kg/km

3 X 16 4,5 2 X 0,8 2,4 42,0 3260 2955 1000 22 494 132
3 X 25 4,5 2 X 0,8 2,4 46,0 3980 3495 1000 24 750 210

3 X 35 4,5 2 X 0,8 2,6 50,0 4720 4045 1000 24 1026 293
3 X 50 4,5 2 X 0,8 2,8 53,5 5610 4640 500 22 1448 421
3 X 70 4,5 2 X 0,8 3,0 58,0 6690 5360 500 24 2011 592

3 X 95 4,5 2 X 0,8 3,0 62,5 8020 6190 500 24 2691 798
3 X 120 4,5 2 X 1,0 3,2 67,5 9690 7410 500 24 3333 993
3 X 150 4,5 2 X 1,0 3,4 72,0 11220 8260 400 24 4220 1263

3 X 185 4,5 2 X 1,0 3,6 76,0 12800 9220 400 24 5187 1550
3 X 240 4,5 2 X 1,0 3,8 82,0 15420 10780 300 24 6730 2024
3 X 300 4,5 2 X 1,0 4,0 87,0 17920 12110 300 24 8374 2506
