PVC insulated power
cables
PVC

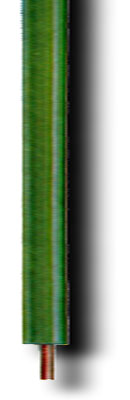

INSULATED SINGLE CORE CABLE
Nominal voltage 450/750 V
Testing voltage 2000 V
Type P,P/M
JUS N.C3.200, JUS N.C3.201
Description:
Conductor: Untinned solid or stranded multi-wire copper conductor.
Insulation: Extruded PVC tube.
Standard colours: Green/yellow, light-blue, black and brown.
Application:
In dry locations, for permanent laying in tubes which may be installed over or under
the mortar as well as on insulators.
The maximum permissible temperature is 70 oC. |
|
|
Nominal area
of conductor |
Construction
of conductor |
Max. overall
diameter |
Net weight
of copper |
Weight |
Packing |
|
| |
|
|
|
|
|
Length |
Drum |
mm2 |
|
mm |
mm |
kg/km |
kg/km |
m |
No. |
| |
|
|
|
|
|
|
|
| 1,5 |
1 |
1,38 |
2,9 |
14 |
20 |
100 |
coils |
| 2,5 |
1 |
1,78 |
3,5 |
22 |
31 |
100 |
|
| 4 |
1 |
2,25 |
4,2 |
36 |
47 |
100 |
coils |
| |
|
|
|
|
|
|
coils |
| 6 |
1 |
2,76 |
4,7 |
54 |
67 |
100 |
coils |
| 10 |
1 |
3,57 |
6,0 |
89 |
111 |
100 |
coils |
| 16 |
7 |
1,70 |
7,5 |
145 |
168 |
100 |
coils |
| |
|
|
|
|
|
|
|
| 25 |
7 |
2,14 |
9,3 |
229 |
278 |
100 |
|
| 35 |
7 |
2,52 |
10,5 |
318 |
308 |
100 |
|
| 50 |
19 |
1,78 |
12,2 |
429 |
500 |
50 |
|
| |
|
|
|
|
|
|
|
| 70 |
19 |
2,14 |
14,0 |
620 |
714 |
500 |
8 |
| 95 |
19 |
2,52 |
16,4 |
860 |
982 |
500 |
9 |
| 120 |
37 |
2,03 |
18,0 |
1086 |
1220 |
500 |
9 |
| |
|
|
|
|
|
|
|
| 150 |
37 |
2,25 |
20,0 |
1334 |
1520 |
500 |
10 |
| 185 |
37 |
2,52 |
22,3 |
1673 |
1820 |
500 |
12 |
| 240 |
81 |
2,25 |
25,0 |
2199 |
2450 |
500 |
12 |
|
