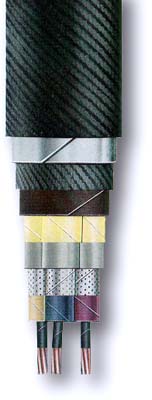

IPZO 13

Cables with impregnated paper insulation

PAPER INSULATED SEPARATE LEAD SHEATHED SCREENED POWER CABLE STEEL TAPE ARMOURED AND ANTI-CORROSIVE PROTECTION



Nominal voltage: 20 kV.
Testing voltage: 32 kV
Type: IPZO 13 and IPZO 13-A, NPZO 13 and NPZO 13-A
JUS N. C5. 020

Construction:
Conductor: Stranded copper or aluminium conductor.
Core: Conductor insulated with paper tapes screened and impregnated with normal or semi-hard compound.
Sheat: Seamless lead or lead alloy tube separately cover and impregnated with paper or thermo-plastic tape.
Cable Core: Separate lead and protected cores laid-up and interestice filled up with impregnated jute.
Inner protection: Impregnated jute with bitumen compound covers.
Mechanical protection: Two steel tapes.
Outer protection: Impregnated jute with bitumen compound covers.

Application: In urban and industrial networks for direct burial into ground.
NPZO 13 type is applied for inclined or vertical installation.

THREE-CORE SCREENED CABLE - copper conductor
Core number and conductor cross section Insul. thickness
P/O		 Lead
sheath
thickness		 Dia.over
lead sheath		 Steel
tape
thickness		 Outer
dia.		 Cable
weight		 Standard
packing
length		 Drum Metal weight
Copper Lead

mm2

mm

mm

mm

mm

mm

kg/km

m

N°

kg/km

kg/km

3 X 25

5,5

1,3

20,0

0,8

57,0

7620

500

22

694

2650

3 X 35

5,5

1,3

21,2

0,8

59,5

8270

500

22

960

2820

3 X 50

5,5

1,3

22,5

0,8

62,5

9030

500

24

1300

3000

3 X 70

5,5

1,4

24,5

0,8

67,0

10430

500

24

1878

3520

3 X 95

5,5

1,4

26,4

0,8

71,0

11800

500

24

2606

3810

3 X 120

5,5

1,5

28,2

0,8

74,5

13340

500

26

3291

4360

3 X 150

5,5

1,5

29,7

0,8

78,0

14990

500

26

4042

4810

3 X 185

5,5

1,5

31,6

0,8

82,0

16670

400

24

5069

4910

3 X 240

5,5

1,6

34,4

0,8

88,0

19560

300

24

6663

5700

3 X 300

5,5

1,6

36,9

0,8

93,5

22180

250

24

8360

6150

3 X 400

5,5

1,8

40,2

0,8

101,5

26890

200

24

10690

7710
THREE-CORE SCREENED CABLE - aluminium conductor

Alumin.

Lead

3 X 25

5,5

1,3

20,0

0,8

57,0

7140

500

22

210

2650

3 X 35

5,5

1,3

21,2

0,8

59,5

7600

500

22

292

2820

3 X 50

5,5

1,3

22,5

0,8

62,5

8130

500

24

397

3000

3 X 70

5,5

1,4

24,5

0,8

67,0

9120

500

24

573

3520

3 X 95

5,5

1,4

26,4

0,8

71,0

9990

500

24

794

3810

3 X 120

5,5

1,5

28,2

0,8

74,5

11050

500

26

1003

4360

3 X 150

5,5

1,5

29,7

0,8

78,0

12180

500

26

1230

4610

3 X 185

5,5

1,5

31,6

0,8

82,0

13140

400

24

1542

4910

3 X 240

5,5

1,6

34,4

0,8

88,0

14930

300

24

2027

5700

3 X 300

5,5

1,6

36,9

0,8

93,5

16360

250

24

2542

6150

3 X 400

5,5

1,8

40,2

0,8

101,5

19450

200

24

3251

7710
