Rubber insulated power conductors and cables

HEAVY DUTY MINING POWER CABLES FOR MINES WITH SURFACE EXPLOITATION

TYPE: EpN 78 ( EpHN 78 )
STANDARD: JUS N.C5.365
NOMIAL VOLTAGE: 3.6/6 ¸ 20/35 KV

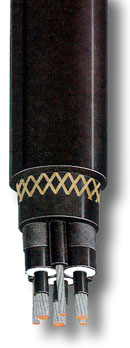

DESCRIPTION OF CABLE:

Three power condutors are insulated with Ethylene-propylene elastomer,and under and over the Insulation are applied layers of semi-conducting elastomer,which are used to protect the Insulation to action of ozone.Three Grounding conductors, which are covered with semi-conducting rubber are located in the interstices of the power cores in contact with semi-conducting layers of insulation of the phase conductors.
The braid of textile thread in reinforced thermosetting heavy duty Neoprene jacket,which increase resistance of cable to mechanical stresses.
The heavy duty Neoprene jacket is tough,acid ,alcali and to weathering factors resistant.Its resistance to flame, high resistance to abrasion and to mineral oils.

APPLICATION:

This cables are designed for use as a mining cables on high voltage heavy-duty mining equipment such as loading and excavatinng shovels and draglines,dredges,drills,cranes,stackers and other surface mining portable and mobile electrical equipement.

Construction data for cables type EpN 78 ( EpHN 78 )

CONSTRUCTION OF CABLE

TYPE EpN 78

( EpHN 78 )

NOMINAL.

THICKNE.OF INSULAT.

mm

 NOM.THICKNESS

OF. OF.

INNER OUTER

SHEATH SHEATH

mm mm

OVERALDIAMET. OF.

CABLE
APPROX.

mm

CABLE MASS

PER 1 000M

APPROX.

COPPER TOTAL

kg kg

 DELIVER. LENGTHS

? 5%

m

TYPE

OF

DRUM

EpN 78 3.6/6 KV
3 x 10 +3 x 6

3.0

1.8

3.0

37

460

1850

300

TD-14

3 x 16 + 3 x 10

3.0

1.8

3.0

39

749

2316

300

TD-14

3 x 25 + 3 x 10

3.0

2.0

3.5

44

991

2913

300

TD-14

3 x 35 + 3 x 10

3.0

2.0

3.5

46

1291

3443

300

TD-16

3 x 35 + 3 x 16

3.0

2.0

3.5

46

1458

3576

300

TD-16

3 x 50 + 3 x 10

3.0

2.0

3.5

51

1716

4255

300

TD-16

3 x 50 + 3 x 16

3.0

2.0

3.5

51

1883

4388

300

TD-16

3 x 70 + 3 x 16

3.0

2.4

4.0

55

2475

5376

300

TD-18

3 x 95 + 3 x 16

3.0

2.4

4.0

59

3134

6366

300

TD-18

3 x 95 + 3 x 25

3.0

2.4

4.0

59

3376

6560

300

TD-18

3 x 120 + 3 x 16

3.0

2.4

4.0

63

3890

7535

300

TD-20

3 x 120 + 3 x 25

3.0

2.4

4.0

63

4131

7725

300

TD-20

3 x 150 + 3 x 25

3.0

2.8

4.5

68

4970

9222

300

TD-20

3 x 185 + 3 x 25

3.0

2.8

4.5

72

5911

10581

300

TD-24

3 x 185 + 3 x 35

3.0

2.8

4.5

72

6211

10817

300

TD-24

3 x 185 + 3 x 50

3.0

2.8

4.5

72

6636

11128

300

TD-24
EpHN 78 6/10 KV

3 x 10 +3 x 6

3.4

2.0

3.5

43

460

2439

300

TD-14

3 x 16 + 3 x 10

3.4

2.0

3.5

45

749

2934

300

TD-14

3 x 25 + 3 x 10

3.4

2.0

3.5

48

991

3437

300

TD-16

3 x 35 + 3 x 10

3.4

2.0

3.5

51

1291

4002

300

TD-16

3 x 35 + 3 x 16

3.4

2.0

3.5

51

1458

4131

300

TD-16

3 x 50 + 3 x 10

3.4

2.4

4.0

58

1716

5128

300

TD-18

3 x 50 + 3 x 16

3.4

2.4

4.0

58

1883

5257

300

TD-18

3 x 70 + 3 x 16

3.4

2.4

4.0

61

2475

6200

300

TD-20

3 x 95 + 3 x 16

3.4

2.8

4.5

67

3134

7528

300

TD-20

3 x 95 + 3 x 25

3.4

2.8

4.5

67

3376

7718

300

TD-20

3 x 120 + 3 x 16

3.4

2.8

4.5

71

3890

8776

300

TD-24

3 x 120 + 3 x 25

3.4

2.8

4.5

71

4131

8966

300

TD-24

3 x 150 + 3 x 25

3.4

2.8

4.5

75

4970

10238

300

TD-24

3 x 185 + 3 x 25

3.4

3.2

5.0

80

5911

12002

300

TD-24

3 x 185 + 3 x 35

3.4

3.2

5.0

80

6211

12239

300

TD-24

3 x 185 + 3 x 50

3.4

3.2

5.0

80

6636

12548

300

TD-24

Construcion date for cables type EpN 78 (EpHN 78)

CONSTRUCTION OF CABLE

TYPE EpN 78

( EpHN 78 )

NOMINAL.

THICKNESOF INSULAT.

mm

 NOM.THICKNESS

OF. OF.

INNER OUTER

SHEATH SHEATH

mm mm

OVERALLDIAMET. OF.

CABLE
APPROX.

mm

CABLE MASS

PER 1 000M

APPROX.

COPPER TOTAL

kg kg

 DELIVER. LENGTHS

? 5%

m

 TYPE

OF DRUM

EpN 78 20 / 35 KV

3 x 35 + 3 x 10

9.5

3.2

5.0

85

1291

9167

200

TD-24

3 x 35 + 3 x 16

9.5

3.2

5.0

85

1458

9296

200

TD-24

3 x 50 + 3 x 10

9.5

3.6

5.5

91

1716

10794

200

TD-24

3 x 50 + 3 x 16

9.5

3.6

5.5

91

1883

10923

200

TD-24

3 x 70 + 3 x 16

9.5

3.6

5.5

95

2475

12120

200

TD-26

3 x 95 + 3 x 16

9.5

3.6

5.5

98

3134

13437

200

TD-26

3 x 95 + 3 x 25

9.5

4.0

6.0

98

3376

13628

200

TD-26

3 x 120 + 3 x 16

9.5

4.0

6.0

104

3890

15445

200

TD-26

NOTE:On the purchaser?s requirement,may be and other cross sections of concetric protecting conductors.

Electrical characteristics of cables type EpN 78 ( EpHN 78 )



3.6 / 6 kV

6 / 10 kV

20 / 35 kV

CONSTRUCTION. OF CABLES

TYPE EpN 78

( EpHN 78 )

OPERATCABLE CAPACITANCE

m F/km

OPERATCABLE

INDUCTANCE

mH/km

OPERATCABLE CAPACITANCE

m F/km

OPERAT.

CABLE INDUCTANCE

mH/km

OPERAT. CABLE CAPACITANCE

m F/km

OPERAT. CABLE

INDUCTANCE

mH/km

3 x 10 +3 x 6

0.23

0.39

0.19

0.42

-

-

3 x 16 + 3 x 10

0.26

0.36

0.22

0.39

-

-

3 x 25 + 3 x 10

0.31

0.33

0.26

0.36

-

-

3 x 35 + 3 x 10

0.35

0.32

0.29

0.34

0.14

0.45

3 x 35 + 3 x 16

0.35

0.32

0.29

0.34

0.14

0.45

3 x 50 + 3 x 10

0.41

0.30

0.34

0.32

0.16

0.42

3 x 50 + 3 x 16

0.41

0.30

0.34

0.32

0.16

0.42

3 x 70 + 3 x 16

0.44

0.29

0.38

0.31

0.18

0.41

3 x 95 + 3 x 16

0.49

0.28

0.41

0.30

0.19

0.39

3 x 95 + 3 x 25

0.49

0.28

0.41

0.30

0.19

0.39

3 x 120 + 3 x 16

0.55

0.27

0.46

0.29

0.21

0.38

3 x 120 + 3 x 25

0.55

0.27

0.46

0.29

0.21

0.38

3 x 150 + 3 x 25

0.60

0.26

0.50

0.28

-

-

3 x 185 + 3 x 25

0.66

0.25

0.54

0.28

-

-

3 x 185 + 3 x 35

0.66

0.25

0.54

0.28

-

-

3 x 185 + 3 x 50

0.66

0.25

0.54

0.28

-

-
