PVC INSULATED HOOK - UP WIRES, TEMPERATURE CLASS 105°
Nominal voltage: 300 V
Testing voltage: 1500 V
Type: MVN (
Standard: SNO 4044
(BS-G 195)

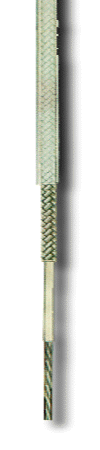

Description:
| Conductor: | 1. Flexible tinned copper strand |
| Insulation: | 2. Seamless layer of PVC compound |
| 3. Fiber glass braid | |
| Sheath: | 4. Flame resistant polyamide |
Application:
For electrical installation in aeronautics where
resistance to flame, abrasion and chemicals is requested.
Applied temperature: up to + 105°C.
| Nominal cross - selection | Construction (wire No x dia.) |
Insulation thickness | Dia. over fiber glass braid | Sheath thickness min. | Outer dia | Total weight | Packing | |||||||||||||
| min. | min. | max. | ||||||||||||||||||
| AWG | mm 2 | Nxmm fi | mm | mm | mm | mm | mm | kg/km | m | |||||||||||
| ----- | ----- | ----------- | -------- | -------- | -------- | ----- | ----- | ------- | ------- | |||||||||||
| 22 | 0,34 | 19 x 0,15 | 0,19 | 1,26 | 0,11 | 1,40 | 1,70 | 5,5 | 100 | |||||||||||
| 20 | 0,54 | 19 x 0,19 | 0,21 | 1,50 | 0,11 | 1,70 | 1,90 | 7,8 | 100 | |||||||||||
| 18 | 0,93 | 19 x 0,25 | 0,24 | 1,% | 0,11 | 2,10 | 2,30 | 12,5 | 100 | |||||||||||
| i6 | 1,17 | 19 x 0,28 | 0,26 | 2,04 | 0,11 | 2,30 | 2,50 | 15,1 | 100 | |||||||||||
| 14 | 1,% | 37 x 0,26 | 0,49 | 2,50 | 0,11 | 2,80 | 3,10 | 24,0 | 100 | |||||||||||
| 12 | 3,16 | 37 x 0,33 | 0,61 | 3,00 | 0,11 | 3,20 | 3,50 | 35,5 | 100 | |||||||||||
